Lutron HomeWorks Enclosures
Details
Low voltage enclosures may be either surface mounted or flush mounted*in an electrical cupboard or equipment room. Both the number of enclosures and the types of components within them are customised to fit the size, lighting plan and design of a home.
Low voltage enclosures can be distributed throughout the home near the rooms they are controlling to provide maximum flexibility during installation of the low voltage wiring.
* LUT-ENC-L-LV21-230 only

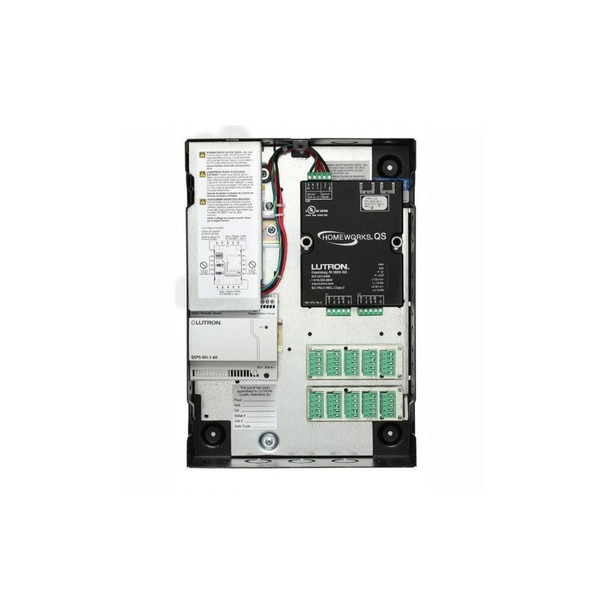

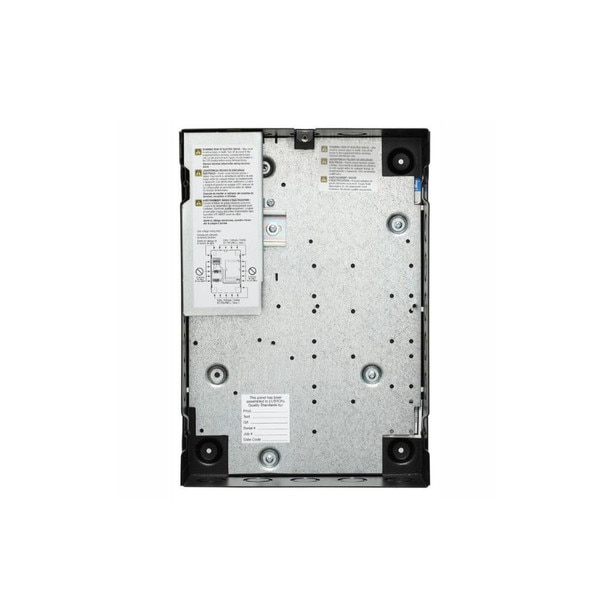

The LUT-ENC-L-LV14-230 35.6cm low voltage enclosure provides a compact housing for mounting one processor or one system interface and up to two wire landing boards (QS-WLB). The enclosure accepts 220V to 240V feed to power the panel, which is self contained in an enclosed area, thereby allowing access to only the low voltage connections when the enclosure cover is removed.
The LUT-ENC-L-LV21-230 53.3cm low voltage enclosure provides a compact housing for mounting up to two HomeWorks QS processors or up to two system interfaces and up to five wire landing boards (QS-WLB). The enclosure accepts 220V to 240V feed to power the panel, which is self contained in an enclosed area, thereby allowing access to only the low voltage connections when the enclosure cover is removed.
