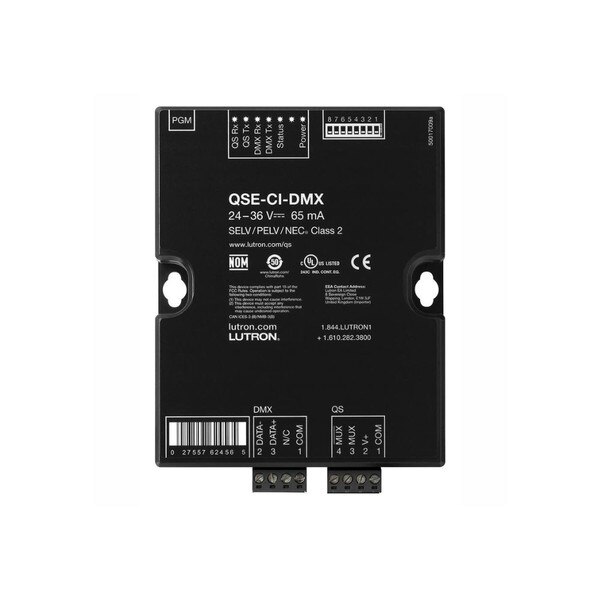

Lutron QSE-CI-DMX Control Interface

The Lutron QSE-CI-DMX Control interface operates either in a standalone QS system, a Quantum system, an Athena system or a HomeWorks system. It performs different functions depending on the system in which it is operating.

As a QS standalone system, the QSE-CI-DMX control interface allows zones on a Grafik Eye QS to control DMX512 controlled devices. Any zone on the Grafik Eye QS can be mapped to either a single DMX512 channel or to three separate DMX512 channels for RGB / CMY colour control applications.

For the Quantum, Athena or HomeWorks Systems, the DMX channels, which offers a maximum of 32 channels are mapped to Quantum, Athena or HomeWorks zones and can be programmed as 1 channel lighting, 1 channel integration or 3 channel RGB / CMY.

Please Note: If the QSE-CI-DMX is part of a Quantum or HomeWorks system, Grafik Eye QS zones cannot be programmed to control DMX channels.
