James Small Aperture 3 Way In-Ceiling Speaker With White or Custom Colour Grilles: EACH

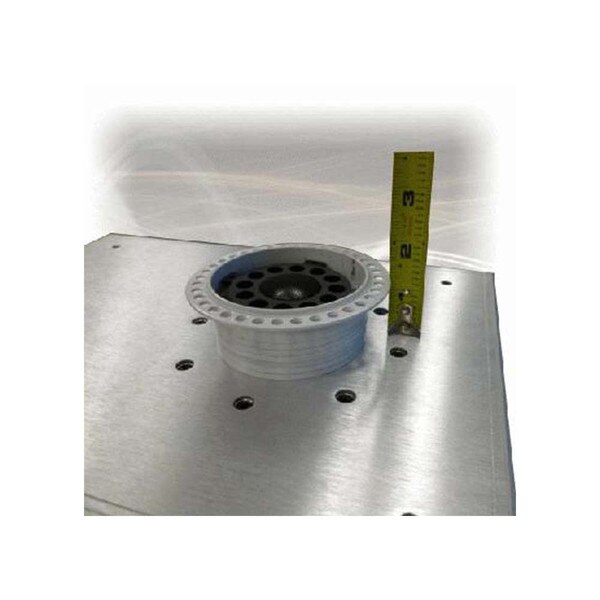

The James Small Aperture® JAM-SA63-8 in ceiling speaker series have a very small 3” round or 3” x 3” square sound aperture yet packs in a full 3 way system for deep bass and wide frequency response. A seamless edge detail keeps them looking smart, modern and discrete. Comes with a 3" white round or square grille or custom colour grille options are available.

Designed for whole house audio installations, particularly where critical listening is of paramount importance and aesthetics are equally as vital. The JAM-SA63-8 enclosure has a small width footprint with a 7.5” / 190.5mm depth and is ideally suited for in ceiling applications but can also equally be mounted in wall. The JAM-SA63-8 enclosure is constructed of aircraft grade aluminium for robustness and durability and designed with a slender 8” width for newer, more constricted ceiling construction.

James Loudspeaker has always sought to strive for better solutions through innovation and this is truly reflected in their commitment to the Small Aperture® (SA) Series. These barely visible ultra-high performance architectural speakers have been created to redefine the concept of a décor matched entertainment system. This system includes a mini PowerPipe 6.5” subwoofer, 2” midrange and 0.75” dome tweeter for wide 38Hz to 22kHz response. Having a real subwoofer also allows the system to play at higher output levels. Deep bass and high SPL from such a small, barely visible opening are the key objectives of the SA Series.

Premium components and modular design provide long life and easy service, while an internal protection circuit offers the utmost reliability. The SA series is designed to also accept industry standard lighting trim kits to allow integration with similarly styled lighting products.

The SA63-8 options available are:

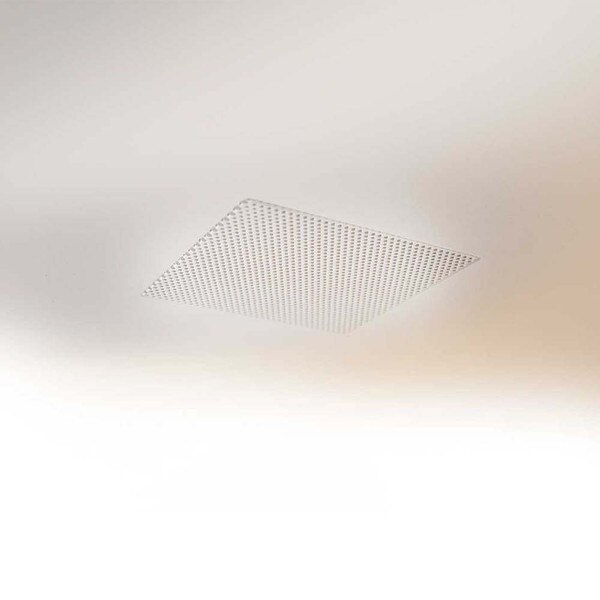

Stud wall / ceiling plasterboard offering a flush finish.

JAM-SA63-8-R-3-SR (Round)
JAM-SA63-8-S-3-SR (Square)

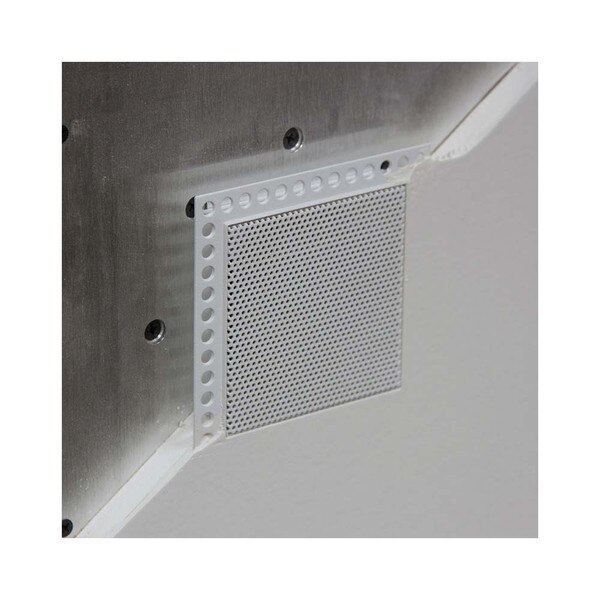

Are designed to be installed directly into the stud wall/plaster board (sheetrock) of a ceiling. The specially designed mud ring allows you to apply sheetrock mudding material and evenly distribute. The JAM-SA63-8 in ceiling speaker will integrate well with any industry standard lighting trim kits. Available with square and round 3" grilles. Please see drop down choices.

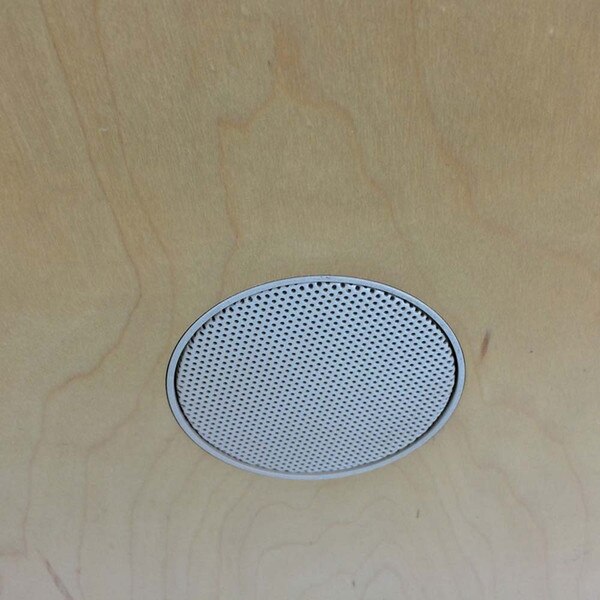

Solid surface offering a flush finish.

JAM-SA63-8-R-3-SS (Round)
JAM-SA63-8-S-3-SS (Square)

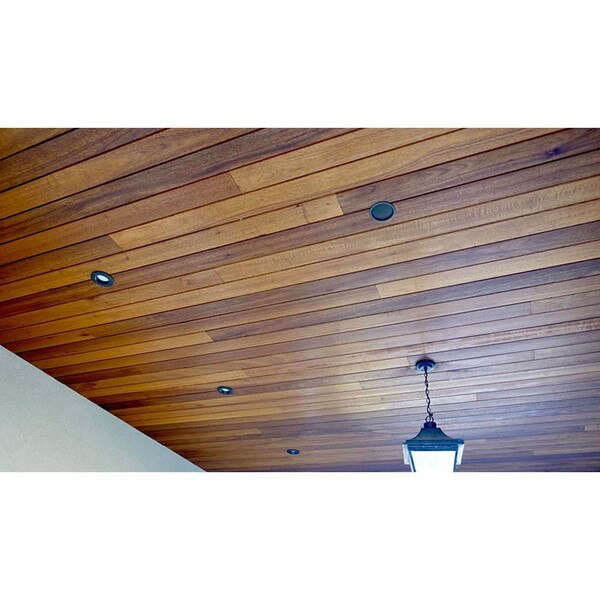

Are ideal solutions for any hard material surface, such as marble, wood, etc. These speakers will integrate well with any industry standard lighting trim kits. Available with square and round 3" grilles. Please see drop down choices.

Retrofit with a bezel around the grille

JAM-SA63-8-R-3-RF (Round)
JAM-SA63-8-S-3-RF (Square)
Are designed to solve two installation needs. Firstly, when installing a SA series speaker in a dropped ceiling, these items provides a 9.53mm / 3/8" edge to cover the edge of the ceiling board, covering any rough cut issues. Secondly, these items can be used to cover any errors made in a solid surface cut out where a wood ceiling panel was not cut exactly or there are tear outs and the visual would not be appealing. Available with square and round 3" grilles. Please see drop down choices.

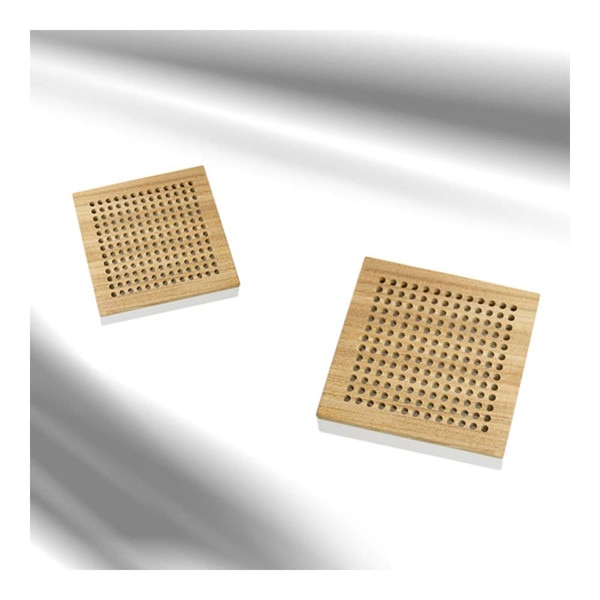

Custom Colour Grille Options

These Small Aperture® in ceiling speakers offer custom power coated coloured grilles. Custom grille colours bring that element of personalisation and uniqueness to your audio system, by matching and co-ordinating with other elements in the room or space.

Please Note: For custom grille colour options, please contact the Habitech Team on 01256 638500 or your local Business Development Manager for a quotation. Please ensure the standard RAL colour you wish to purchase is confirmed at the time of placing your order.

NBFor associated spacer rings please see the related items section
