James Small Aperture 3 Way In-Ceiling Full Range Speaker With White or Custom Grille Colour Options: EACH

The Small Aperture SA63-7 3 way in ceiling full range speakers from James Loudspeakers deliver high volume levels, deep bass and wide coverage from a small and barely visible 3” flush and seamless round or square opening. Suitable for a range of installation types such as stud wall, solid surface or retrofit, these are designed to be hidden whilst still delivering the complete musical experience. Marine option and custom grille colours are available.

James Loudspeaker has always sought to strive for better solutions through innovation and this is truly reflected in their commitment to the Small Aperture (SA) Series. These barely visible ultra high performance architectural speakers have been created to redefine the concept of a décor matched entertainment system.

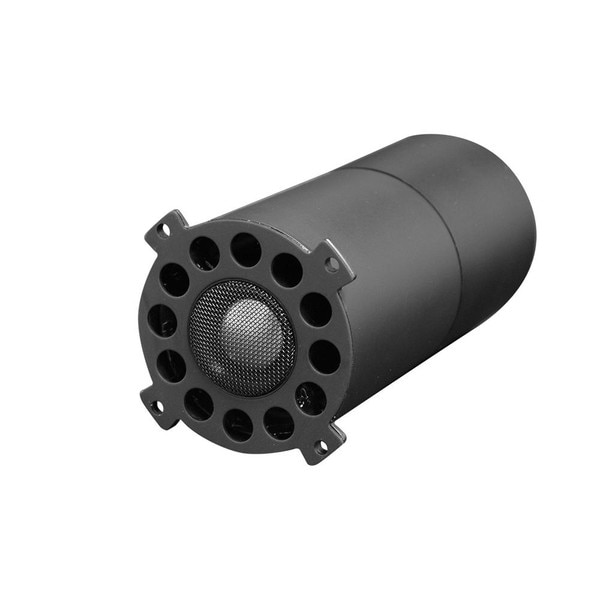

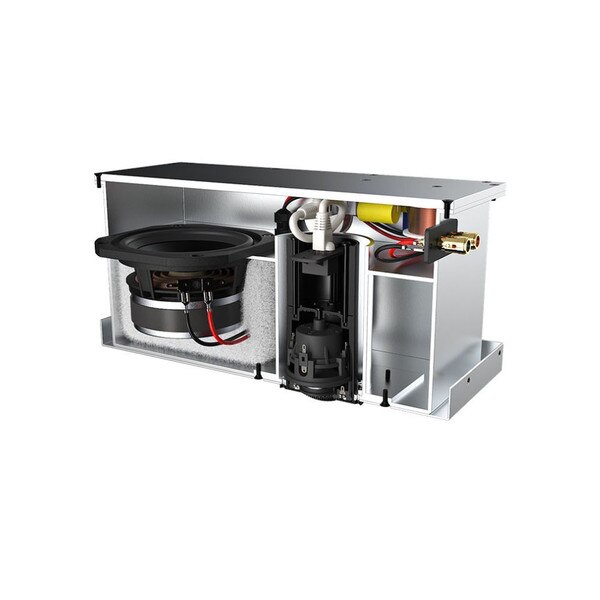

The point source mid/high module provides excellent off axis response and the hidden mini PowerPipe woofer generates bass down to 38Hz for a full range music experience and yet the customer only sees a 3” round or square seamless flush grille. To trim this opening, James Loudspeaker offers a vast array of standard and custom finishes for the low profile grille, which is available in 3” round or square flush mount styles.

The SA63-7 options available are:

Stud wall or ceiling plasterboard offering a flush finish.

JAM-SA63-7-R-3-SR (Round)
JAM-SA63-7-S-3-RR (Square)
Are designed to be installed directly into the stud wall/plaster board (sheetrock) of a ceiling or wall. The specially designed mud ring allows the even application of sheetrock mudding material (plaster). The SA63-7 in ceiling and in wall speaker will integrate well with any industry standard lighting trim kits. Available with square and round 3" grilles. Please see drop down choices.

Solid surface offering a flush finish.

JAM-SA63-7-R-3-SS (Round)
JAM-SA63-7-S-3-SS (Square)
Are ideal solutions for any hard material surface, such as marble, wood, etc. These speakers will integrate well with any industry standard lighting trim kits. Available with square and round 3" grilles. Please see drop down choices.

Retrofit with a bezel around the grille

JAM-SA63-7-R-3-RF (Round)
JAM-SA63-7-S-3-RF (Square)
Are designed to solve two installation needs. Firstly, when installing a SA series speaker in a dropped ceiling, these items provides a 9.53mm / 3/8" edge to cover the edge of the ceiling board, covering any rough cut issues. Secondly, these items can be used to cover any errors made in a solid surface cut out where a wood ceiling panel was not cut exactly or there are tear outs and the visual would not be appealing. Available with square and round 3" grilles. Please see drop down choices.

Custom Colour Grille Options

These Small Aperture in ceiling speakers offer custom power coated coloured grilles. Custom grille colours bring that element of personalisation and uniqueness to your audio system, by matching and co-ordinating with other elements in the room or space.

Please Note: For custom grille colour options, please contact the Habitech Team on 01256 638500 or your local Business Development Manager for a quotation. Please ensure the standard RAL colour you wish to purchase is confirmed at the time of placing your order.

NB For associated spacer rings please see the related items section
